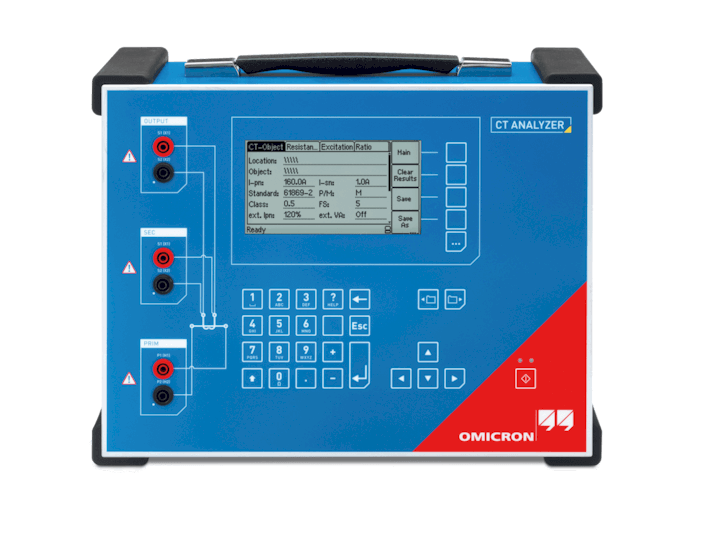

Omicron CT Analyzer

  • Injects low test signals into secondary side of the CT
  • Determines the CT‘s equivalent circuit parameters
  • Identifies all relevant CT performance parameters
  • Displays all relevant parameters of the CT and its accuracy at different currents and burdens

View Data Sheet

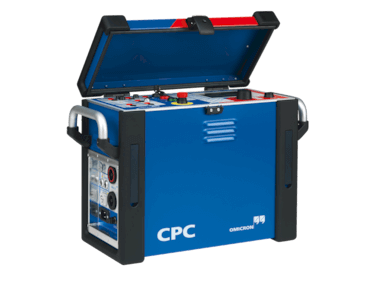

Omicron CPC 100

  • Versatile Testing: Performs tests on power/instrument transformers, circuit breakers, rotating machines, grounding, and cables.
  • High Power: Offers a strong integrated source (up to 5 kVA, 800A/2kV) for primary injection
  • Consolidated Device: Replaces several individual test sets, reducing equipment, training, and transport costs.
  • Weight: 43kgs
  • View Data Sheet
2293

Haefely WA2293

  • Automatic Transformer Test System
  • 3 Phase testing of Distribution/Power Transformer and CT/VT
  • All testing parameters available
  • Weight 18kgs

View Data Sheet

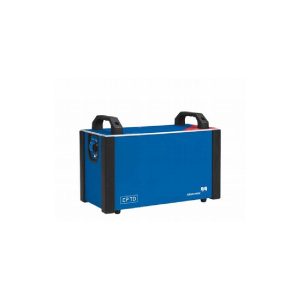

Omicron TD15

Hire Omicron CP TD15 Tan Delta Test Set | High-Voltage Power Factor & Capacitance Diagnostics

Looking for a precise diagnostic solution to assess the insulation health of your high-voltage assets? Hire the Omicron CP TD15 Tan Delta / Power Factor Test Set for advanced capacitance, dissipation factor (tan δ), and dielectric loss measurements. Designed to operate as a high-voltage accessory for OMICRON control units (such as the CPC 100, TESTRANO 600, or CPC 80), the CP TD15 generates test voltages up to 15 kV to provide laboratory-grade diagnostic precision even in environments with severe electromagnetic interference.Key Features & Capabilities

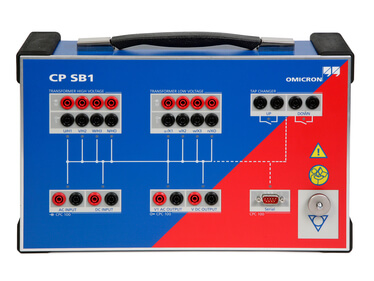

Omicron SB1 (Switch Box for CPC 100)

  • Time saving: Rewiring no longer necessary
  • Safety: one-time connection of cables
  • Minimization of measurement errors: Fully automated testing

View Data Sheet

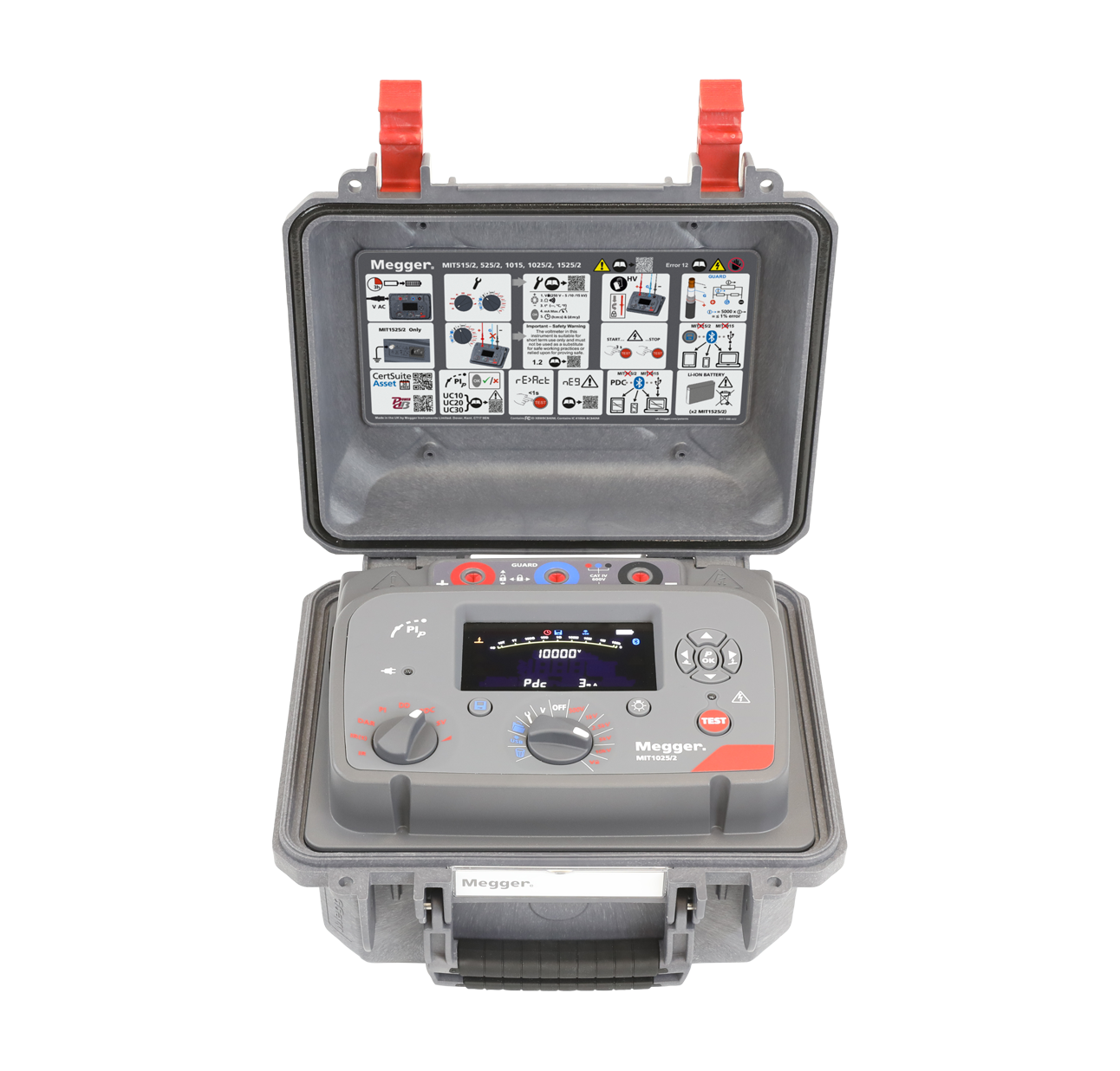

Megger MIT1025 – Advanced IR Tester

  • RE>Act mode enhanced accuracy and safety
  • PI predictor function (PIp)
  • PDC test capability Measures up to 30 TΩ
  • Safety rated up to CAT IV 1000 V to 3000 m
  • Up to 6 mA noise rejection

View Data Sheet

Midas_micro_2883

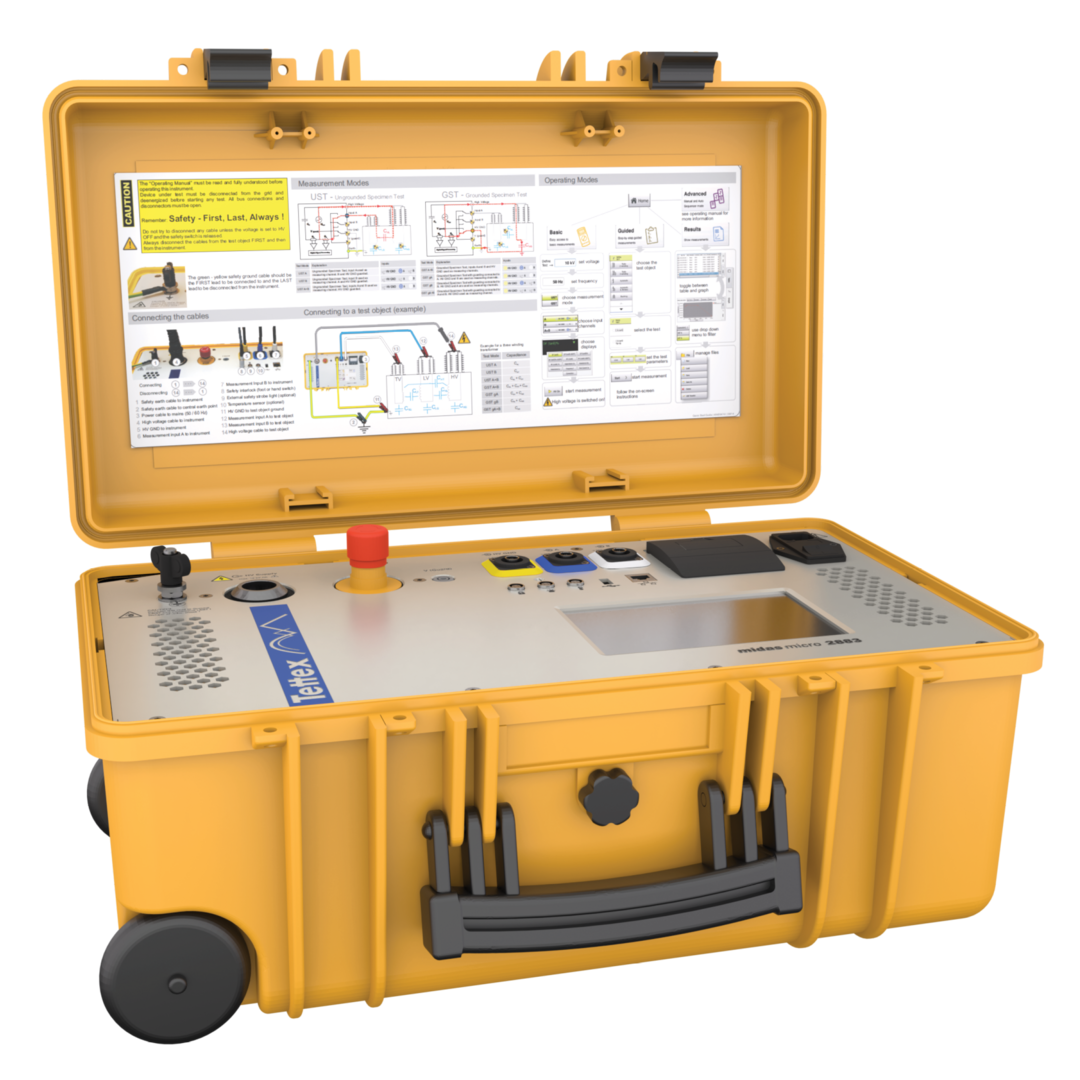

Haefely (Tettex) MIDAS Micro 2883

  • All in one 12kV Tan Delta Test System
  • Smallest and most compact insulation diagnostic test set on the market
  • 7 inch colour touch screen user interface
  • Weight 25kgs

View Data Sheet

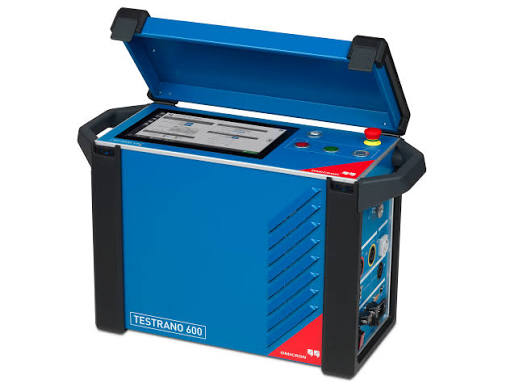

Omicron Testrano 600

Key Features & Capabilities
  • Three-Phase Testing: Energizes all three phases simultaneously, cutting standard testing time by up to two-thirds compared to conventional single-phase test sets. [1, 2]
  • Single Connection Setup: Requires only a single set of connections to perform multiple tests without repeatedly rewiring the transformer. [1, 2]
  • Supported Tests:
    • Transformer Turns Ratio (TTR)
    • DC and Dynamic Winding Resistance (DRM)
    • Demagnetization
    • Short-Circuit Impedance / Leakage Reactance
    • Frequency Response of Stray Losses / Sweep Frequency Response Analysis (SFRA)
    • On-Load Tap Changer (OLTC) scan and vector group checks

.

View Data Sheet

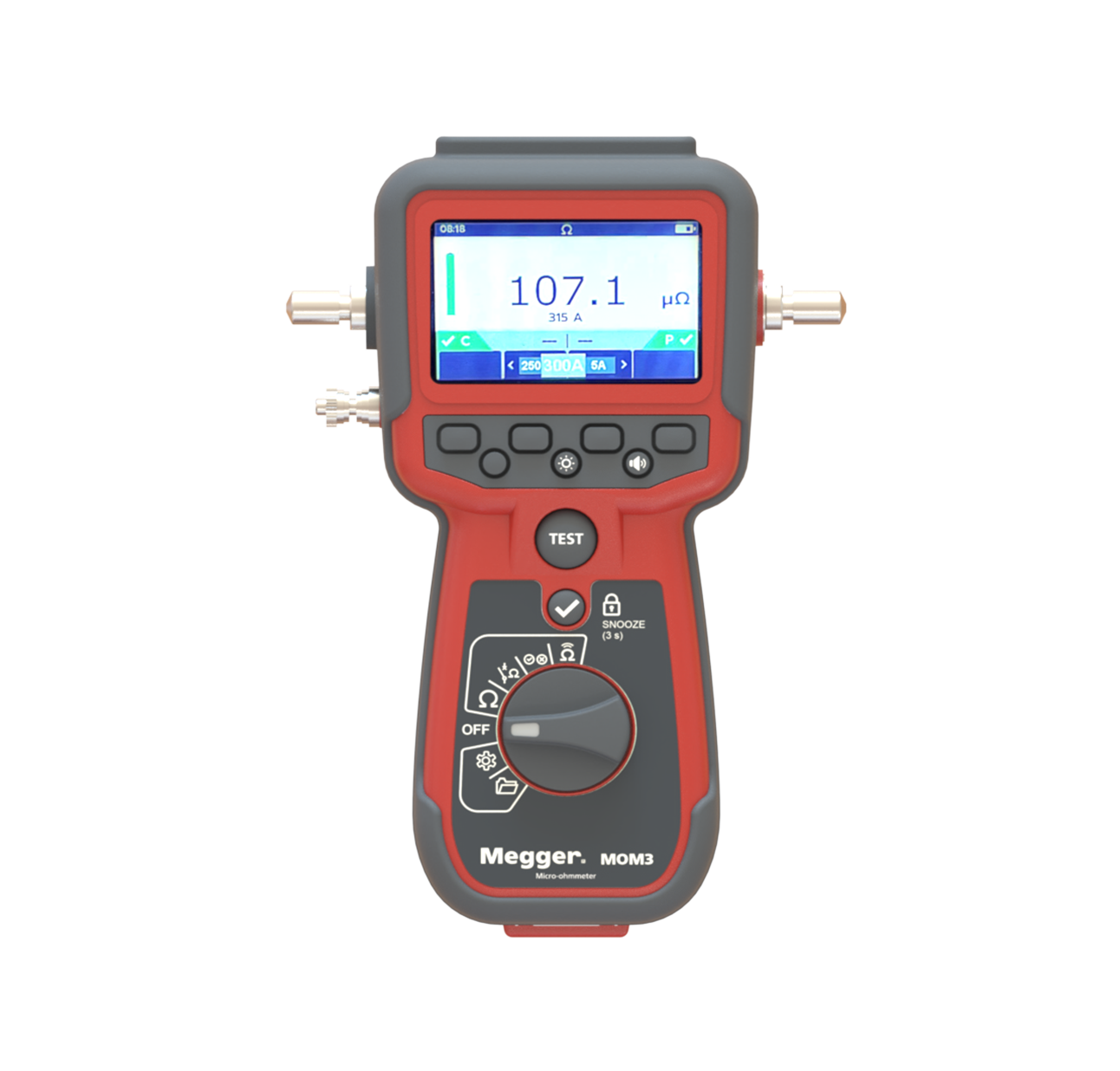

Megger MOM3 With Probes & Clamps

  • Test current up to 300 A
  • Battery operated
  • Lightweight – 1.15 kg Auto
  • range: 0.1 µΩ to 3000 mΩ Optional wifi communication to EGIL 200*
  • Complies with IEEE and IEC standards

View Data Sheet
