b2 Electronics HVA120

Looking for a high-performance solution for field testing medium and high-voltage cables? Hire the b2 electronics HVA120 VLF High Voltage Test Set for precise Very Low Frequency (VLF) withstand testing, DC hipot testing, sheath integrity verification, and sheath fault location. Engineered with an industry-leading power-to-weight ratio, the HVA120 delivers continuous output up to 120 kVpeak / 85 kVrms without thermal limitations, making it the ideal test set for medium-voltage cable networks up to 69 kV in accordance with IEEE 400.2 and IEC standards. Key Features & Capabilities

View Data Sheet

hva60

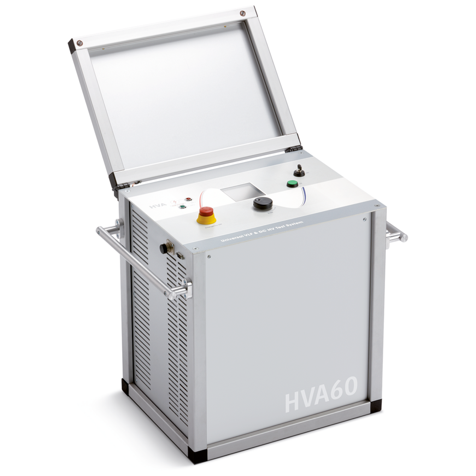

B2 Electronics HVA60

  • Portable VLF Test System and DC Hipot.
  • Output Voltage: 62kV peak, 44kVrms
  • Output Load 1µF@0.1Hz@44kVrms
  • Weight 57kgs

View Data Sheet

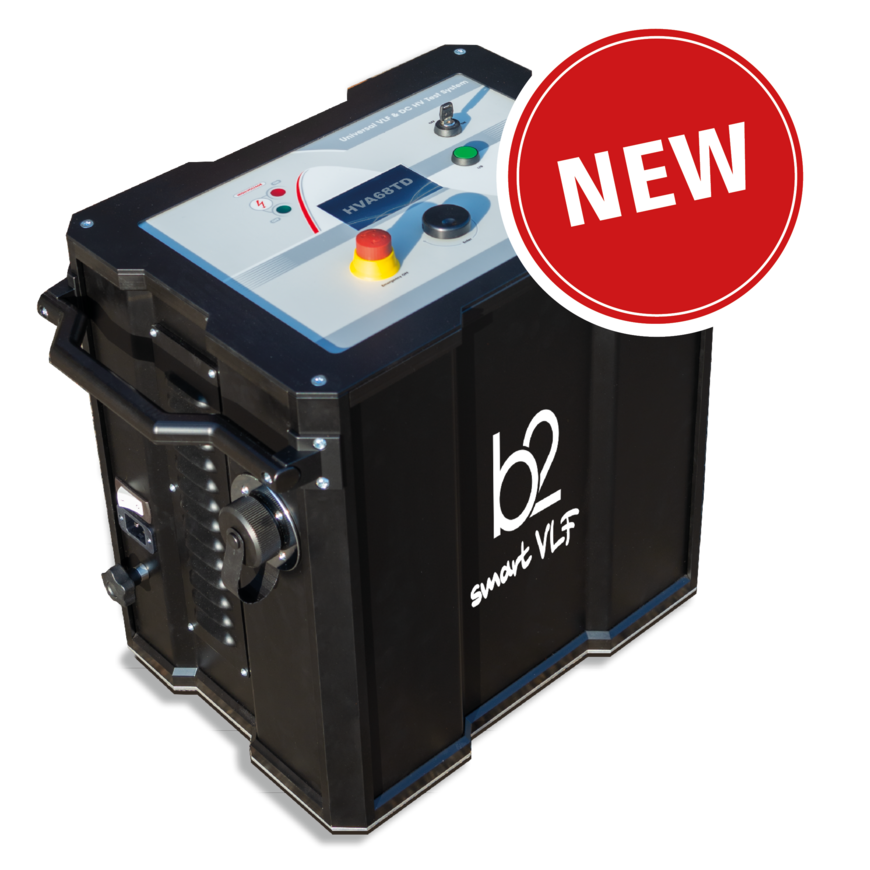

B2 Electronics HVA68TD

  • Portable VLF Test System and DC Hipot with Tan Delta
  • Output Voltage: 68kV peak, 48kVrms
  • Output Load: 2µF@0.1Hz@44kvrms
  • Weight: 63kgs

View Data Sheet

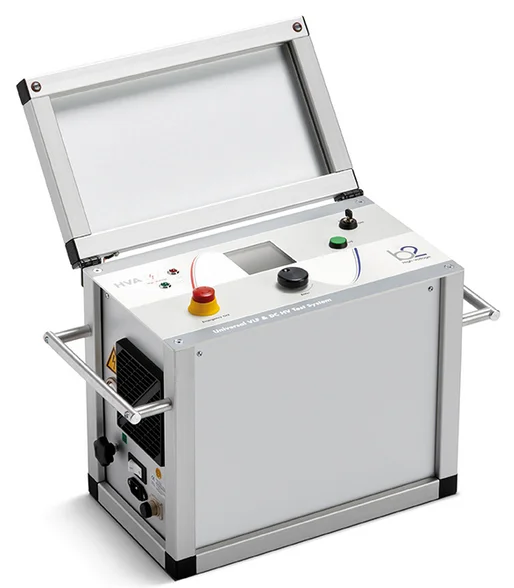

B2 Electronics HVA34

    • Output voltage 34 kVpeak , 24 kVrms
    • Pure sinusoidal output voltage (load-independent)
    • Internal TD measurement with high accuracy (1 x 10-4)
    • 0.8 μF @ 0.1 Hz @ 24 kV rms
    • Highest test capacity of 10 μF
    • Ultra light and compact weight (20 kg)
    • View Data Sheet

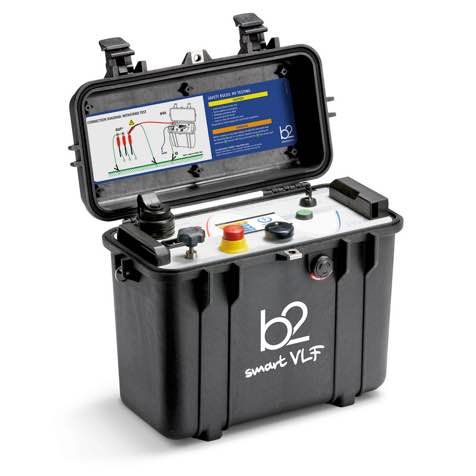

B2 Electronics HVA28TD

  • Portable VLF Test System and DC Hipot with Tan Delta.
  • Output Voltage: 29kV peak, 20kVrms
  • Output Load 0.9µF@0.1Hz@32.3kVrms
  • Weight 39kgs

View Data Sheet

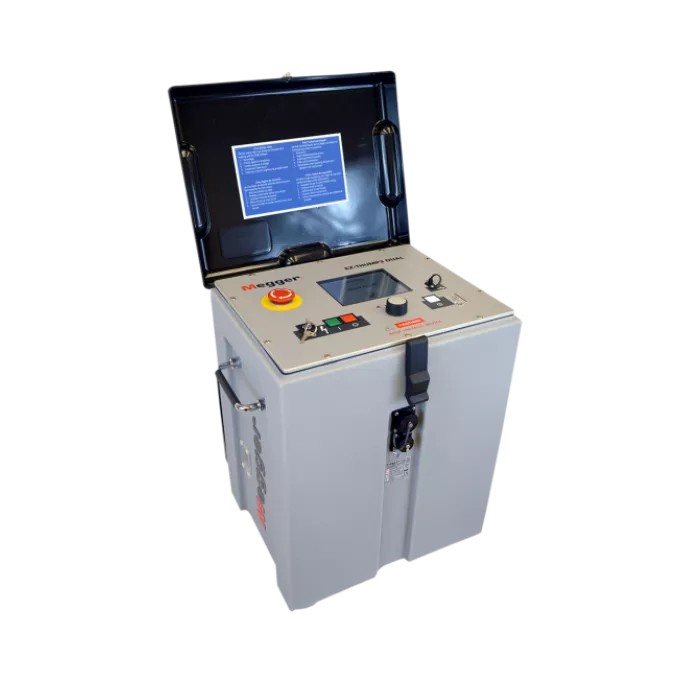

Megger EZ Thump 12kV

  • Compact, lightweight, all-in-one, rugged portable cable fault locating system
  •  Battery and AC line operation; field-replaceable battery
  •  Automatic cable end identification
  • Automatic ARM fault pre-location with multishot technology

View Data Sheet

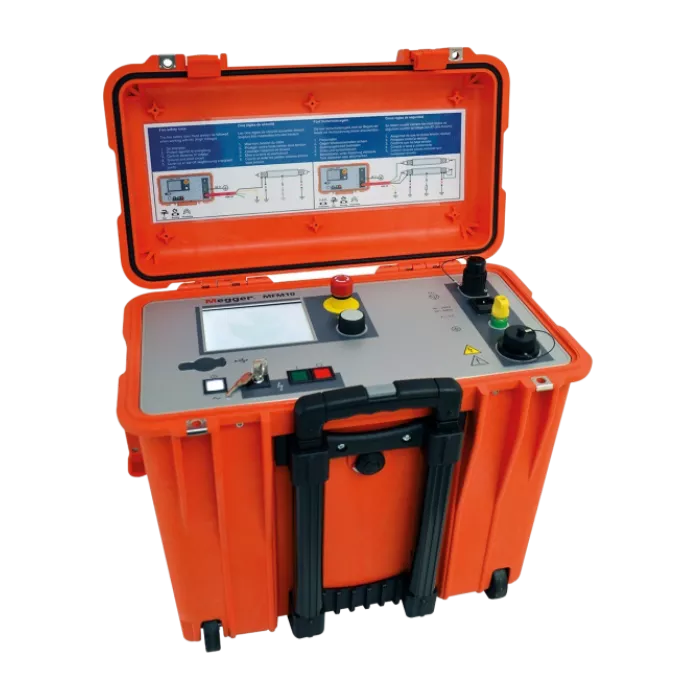

Megger MFM 10 Seba

  • Test voltage up to ±10 kV DC
  • Up to 750 mA continuous current, also suitable for burning
  • Adjustable current limiter
  • Bipolar measurement for the highest accuracy
  • Only one single removable high voltage connection cable needed
  • Easy Go operation via jogdial and touch screen
  • Automatic measurement and protocolling
  • View Data Sheet

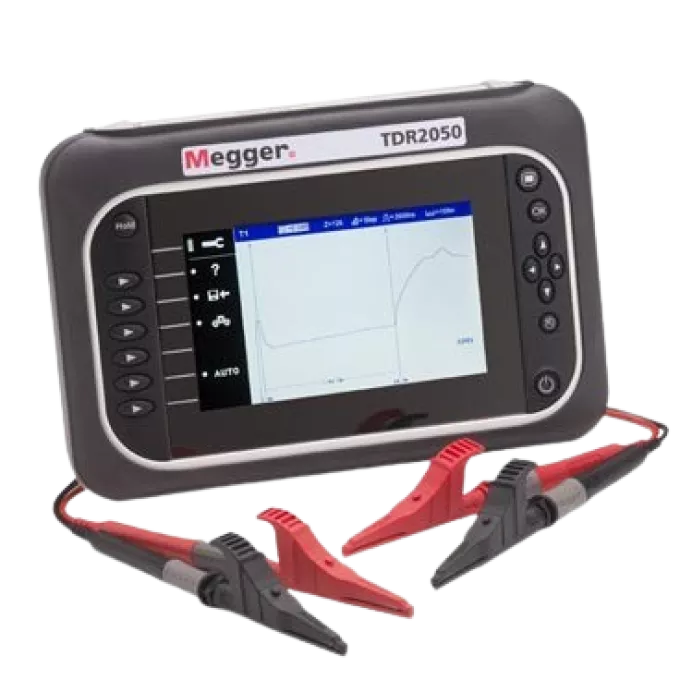

Megger TDR 2050

  • CAT IV 600 V input protection
  • IP54 rating offers real life working
  • ‘Auto Setup’ mode for instant, easy use
  • ‘AutoFind’ and ‘FindEnd’ functions helps find the fault fast
  • Trace tagging facility that allows a name to be saved with the trace
  • Distance dependent gain to counteract signal attenuation

View Data Sheet

b2 PDTD60-2

The PD60-2 and PDTD60-2 offer both portable and built-in solutions for diagnostics of medium voltage cables, rotating machines and transformers. Diagnostics of medium and high voltage cables provides the opportunity for early detection of vulnerabilities and preventative maintenance work to be carried out before the cable fails in service.

View Data Sheet

B2 PDTD68

  • Get to know the pdtd68

    The PDTD68 is an integrated VLF diagnostics system specially designed for the use with HVA VLF test sets. Thanks to its practical design and the single fiber optic interface to the PC it enables a simple and safe measurement setup, which can be built up very quickly.

    A large 22 nF coupling capacitor, a built-in filter device and a newly developed data acquisition unit ensure sensitive and accurate PD measurements.

    The PDTD68 is also equipped with a battery supply, which allows use in locations without a permanent power source. It can just as easily be powered and charged via USB-C (PD 3.0).

View Data Sheet

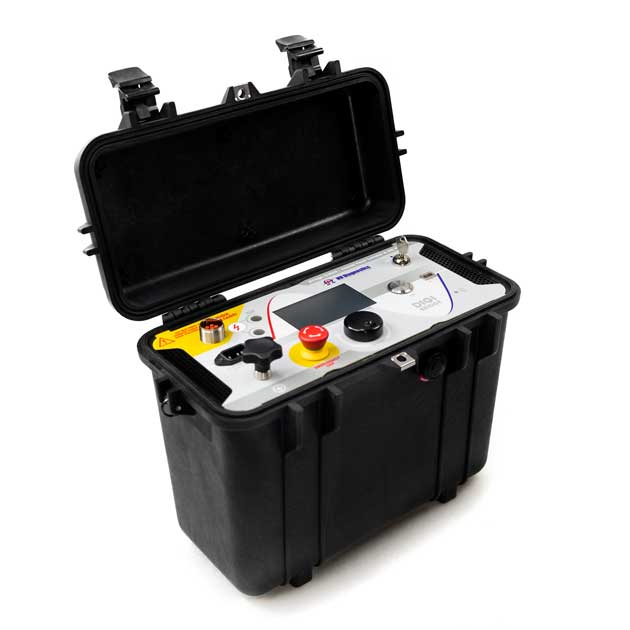

HV Diagnostics Digi-bridge

  • Cable/Jacket/Sheath Fault Locator and DC Hipot
  • Output: 12kV, 30µF
  • Weight 12.8kgs
  • IP65 Rating

View Data Sheet

Ez

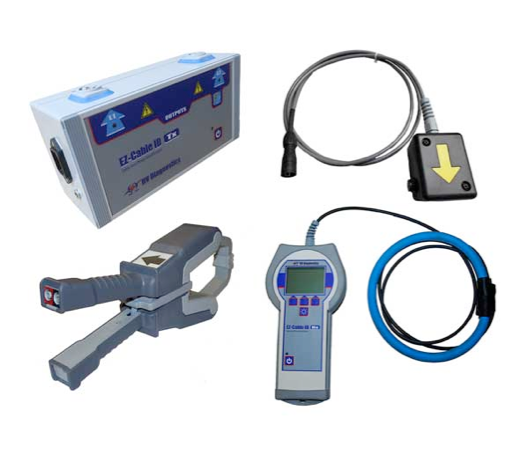

HV Diagnostics EZ-Cable ID

  • Simultaneous single and three phase identification
  • Use on energised or de-energised cables, single or multi-core
  • Power with battery or mains
  • Direct input to cable or inductive clamps x 2

View Data Sheet

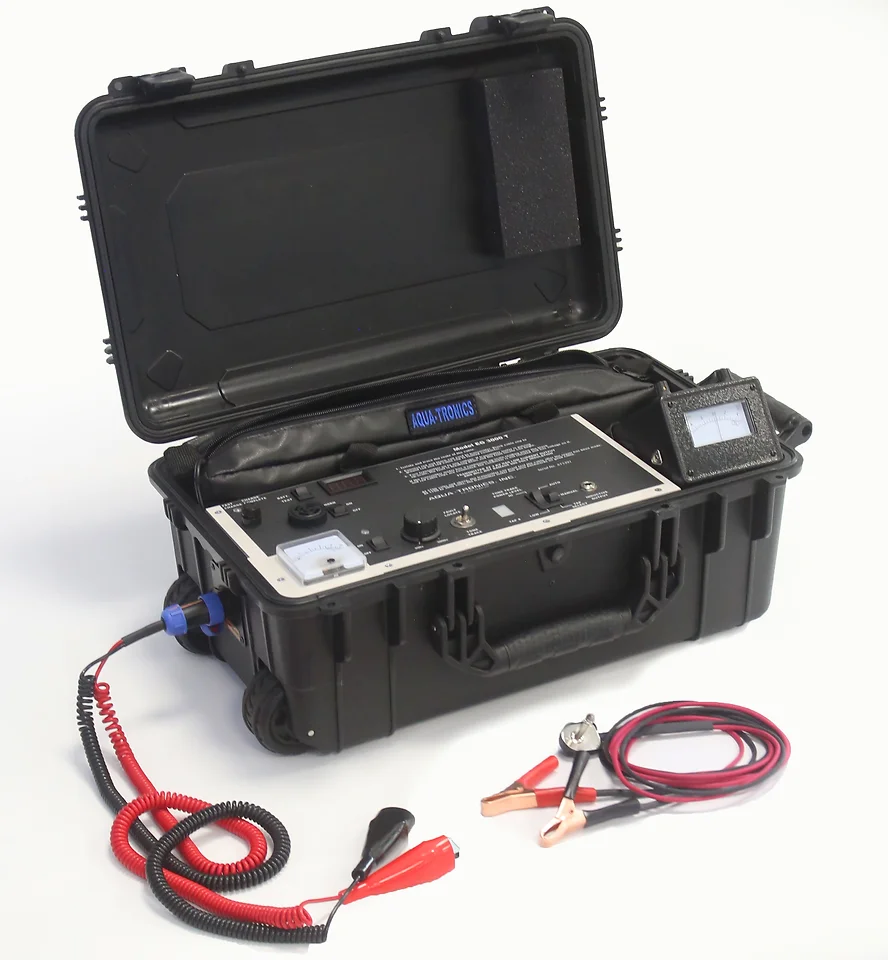

Aqua Tronics EG-3000 and EG3000T

  • Underground Cable Fault Locator with Automatic Cable-Saving Voltage Control
  • High current up to 2.2 amps available
  • High resistance cable thumper
  • High voltage up to 3kV output
  • Battery operated unit with built-in cable tracer
  • Weight 14kg

View Data Sheet

Thumper

Hipotronics X-Wave Portable Thumper

  • Output: 500V-10kV,12.5mA, 350J
  • Modes: Arc Reflection (High voltage TDR), Direct TDR (Low voltage TDR), DC Hipot, Capacitive Discharge (Thump)
  • Weight: 19kgs

View Data Sheet
