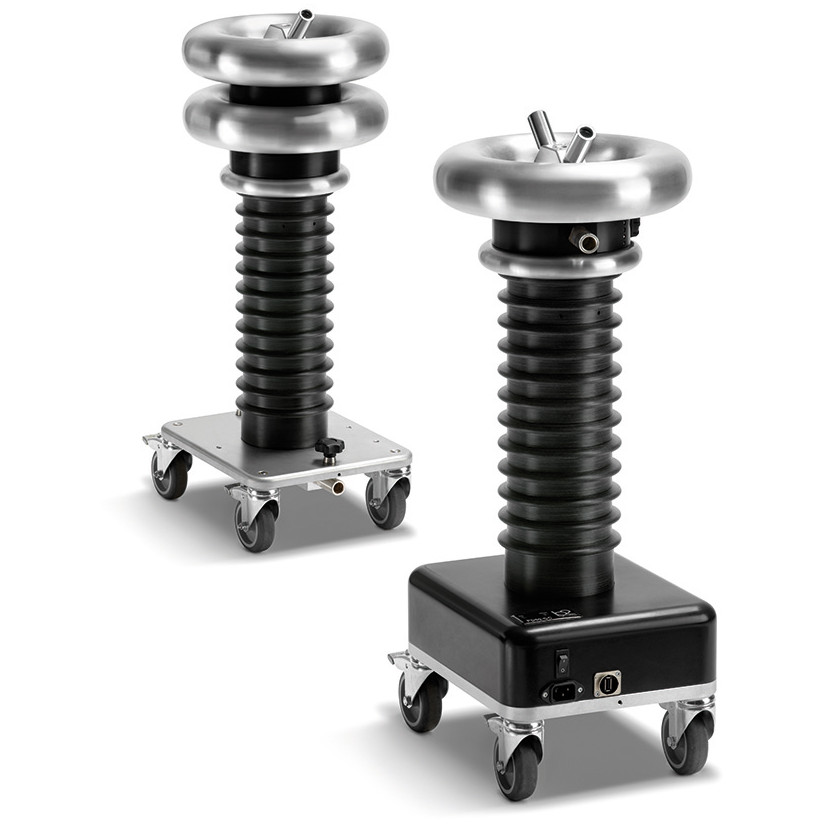

The PD60-2 and PDTD60-2 offer both portable and built-in solutions for diagnostics of medium voltage cables, rotating machines and transformers. Diagnostics of medium and high voltage cables provides the opportunity for early detection of vulnerabilities and preventative maintenance work to be carried out before the cable fails in service.

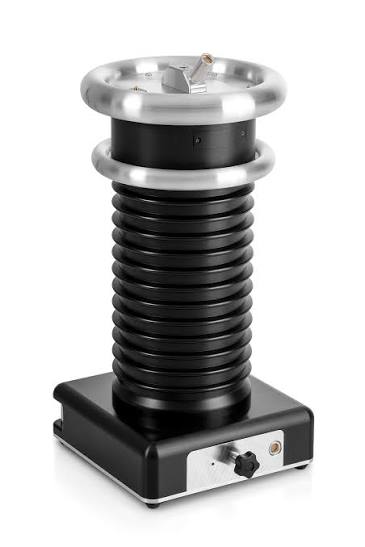

The PDTD68 is an integrated VLF diagnostics system specially designed for the use with HVA VLF test sets. Thanks to its practical design and the single fiber optic interface to the PC it enables a simple and safe measurement setup, which can be built up very quickly.
A large 22 nF coupling capacitor, a built-in filter device and a newly developed data acquisition unit ensure sensitive and accurate PD measurements.
The PDTD68 is also equipped with a battery supply, which allows use in locations without a permanent power source. It can just as easily be powered and charged via USB-C (PD 3.0).
